Accessories and work-benches

IMB Multifor is a main contact for manufacturing industrial equipment for installers and electrical panel builders. Our machinery includes a complete set of accessories, cases, stands and work-benches which can be customised in order to meet your workplace layout requirements.

Call us for information and any specific needs.

Contact us

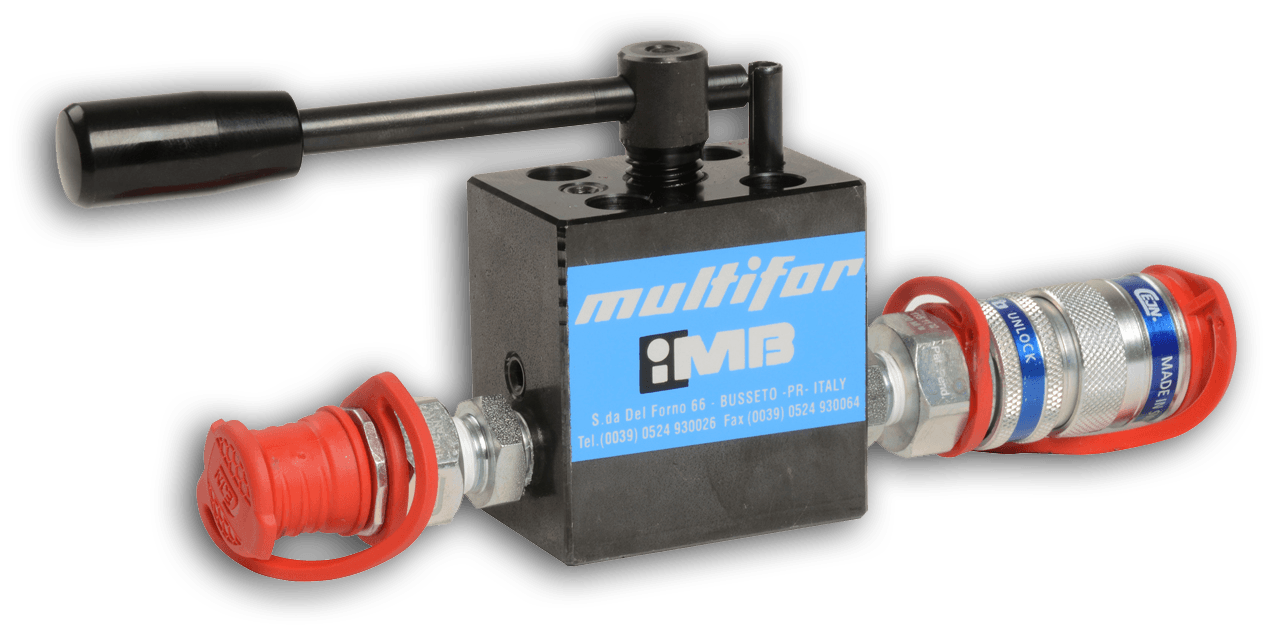

9162 - Positioning valve

The positioning valve is equipped with male and female rapid connectors, for a fast assembly.The valve can be connected to the TRIS cylinder when the electric unit is used. The small movements of the tool facilitate the positioning of the bars.

Slide title

Scrivi qui la tua didascalia

Button

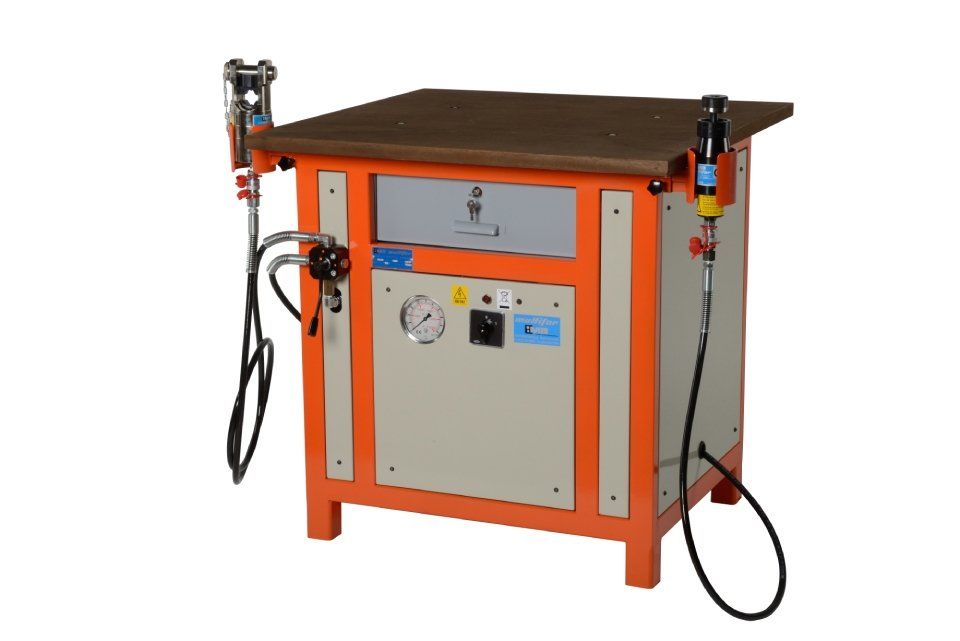

9048 - Workbench

Within our range of additional accessories and stands, you can find the MAXI work table, which is designed and built in order to work even in small spaces with several cylinders and a single control unit. The TRIS fabrication unit can sit on the MAXI worktop, while the perforation (9022) and cable lugs cylinder (9024 - 9036) can be placed in the lateral (telescopic) cylinder holders.

The MAXI table comes equipped with:

diverter valve that allows several cylinders to work with the same control unit (valve model 9163 for two cylinders). Valves can be mounted so that several cylinders can be put to work.
pressure gauge for reading the working pressure
electric protractor connection socket (9161)
remote control connection socket (9156)
Dimensions: 1300x960xh. 870 mm
Weight without control unit and accessories: 96 kg

This can only be used with electrical control units with options models 9008 - 9009 - 9010.

Available in 220V (9048 / 220V) or 380V (9048 / 380V) models.

Slide title

Scrivi qui la tua didascalia

Button

Optional ECU connectors
Button
Bypass valves, pressure gauge and main switch
Button

Slide title

Scrivi qui la tua didascalia

Button

Remote foot pedal with increased safety

Remote foot pedal for electric control units with a total protection. It is equipped with a security device with a double approval in order to avoid accidental manipulation and with a double pressure switch. The switch stops the electric control if the pressure on the pedal is too high.

Hydraulic valves and accessories

9163/9164/9165 - Diverter valves for operating multiple cylinders

Branch valves for 2-3 and 4 cylinders are used when several cylinders have to work with one pump or electrical control unit. These valves avoid to connect or disconnect continually the respective hoses. By just moving a simple lever, the branch valves divert the hydraulic oil to the cylinder to use. All branch valves
are equipped with hoses and rapid connectors.
Button
9817/9819 - Quick couplings

All MULTIFOR equipment, cylinders and hoses are supplied complete with rapid connectors with locking and rapid coupler. 1/4” standard version, 3/8” on request with screw connector 9810.
Button
9810 - Pipes and extensions

The spare pipe of the MULTIFOR equipment is complete with female rapid connector and it has a standard length of 2,5 mt. The working range of cylinders can be extended by a simple addition of a 2,5 mt. extensions hose (9812) or 5 mt.( 9813). These are realised with highpressure pipe, already filled with oil AGIP ARNICA 22 and with rapid connectors.
Button
9828 - Hydraulic oil

All MULTIFOR equipment, and hoses contain hydraulic oil. AGIP ARNICA 22. Whenever topping up is required, it is essential to use the same type of
oil. For a best working of the pumps, the level must be inspected at regular intervals by checking the oil dipstick. Available in cans of 1 Kg.
It is highly recommended not to use oils other than those indicated by us, in particular do not use brake oil or dielectric oil for transformers.
Button

Pedals and supports

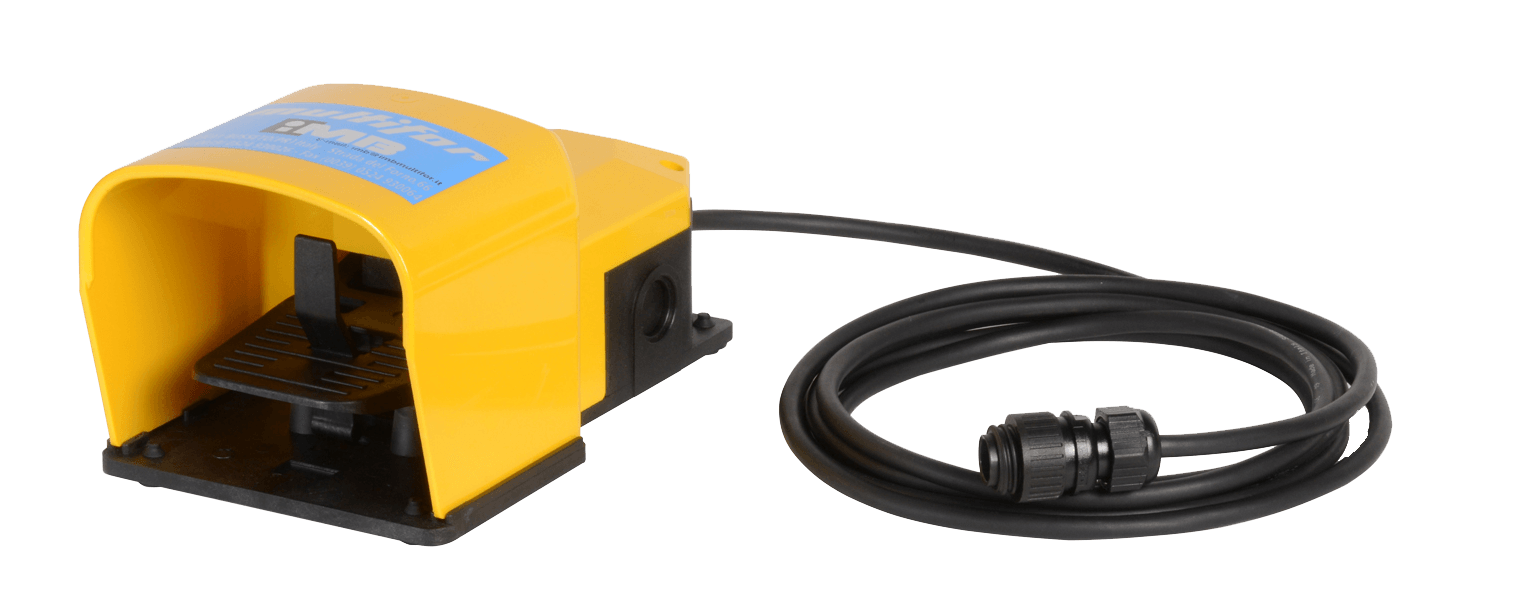

9156 - Remote foot pedal

Remote foot pedal for electric control units.
Button
9806 - Bench clamp

A practical accessory for holding punching cylinder (9022) and crimping tools (9024-9036).
Button
9808 - Stand

Used to hold punching cylinders and crimping tool, where it is not possible to use a bench clamp. Equipped with a cylinder holding clamp, it is a folding and portablle accessory.
Button
9809 - Stand with roller

This tripod is for holding the heavy bars.
During the works, the roller allows a good support and the sliding of the bar without effort. The height is adjustable for the different works.
Button

Tool boxes

9822 - Metal case

The case 9822 is suitable for the transport of the MULTIFOR 9000, 9001 cylinders and different accessories.
Dim. mm 650x250x270 h
Button
9823 - Metal case

The metal case 9823 is suitable for the transport of shears, cylinders, pump 9001 and different accessories.
Dim. mm 600x270x220 h
Button
9830 - Portable tools case

This case 9830 is suitable for the transport of cylinders and accessories.
Dim. mm 330x170x110
Button
9834 - Honeycomb for 9823

Separator for tool box 9823
Button
9833 - Honeycomb for 9830

Separator for tool box 9830
Button
9829 - Case for electric tools

The case 9829 is suitable for the transport of the tools with battery.
Button
9825 - Portable tools case

The case 9825 is suitable for the transport of manual punching cylinders and its accessories.
Button
9826 - Portable tools case

The case 9826 is suitable for the transport of punches and different accessories.
Button

Stands

10100/50

This base can be used for the support of all our equipment apart from than the hydraulic punching machines 10090L. it is a simple open bench for lodging the electric unit and other tools. It has a tool-holder drawer.
Dimensions
Lenght 750 mm.
Width 750 mm.
Height 803 mm.
Weight 55 kg.
Button
10100/90E

It is a simple and inexpensive base. It can be used for all our equipments. It has a toolholder drawer and a base for the electric units.
Dimensions
Lenght 906 mm.
Width 756 mm.
Height 786 mm.
Weight 45 kg.
Button
10100/90

Specific base for the hydraulic punching
machines type 10090 but it can be used also with the other smaller hydraulic punching machines and other equipment. Equipped with a protection carter, there is the possibility to lodge an electric unit inside.
Dimensions
Lenght 1026 mm.
Width 800 mm.
Height 750 mm.
Weight 112 kg.
